• Painted front bumper
• Argent rear bumper
• Painted body-color grille
• Black 5" x 7" exterior mirrors
• Tinted glass
• Sunscreen glass on rear windows
• Variable intermittent windshield wipers
• Front/rear body-color fascias
• "Sport" door graphics

• Cloth 40/20/40 split bench seat w/center armrest
• Cloth 60/40 split folding rear bench seat
• Floor carpeting
• Analog instrument cluster w/tachometer
• 120 MPH primary speedometer
• Electronic AM/FM stereo radio w/cassette, (4) speakers
• Cigar lighter
• Cloth door trim panels w/map pocket
• Dual cloth covered sun visors w/RH mirror
• Driver/passenger assist handles
• Light group-inc: ash tray/glove box light, courtesy light under
• Light group-inc: ash tray/glove box light, courtesy light under instrument panel, mini overhead console, aux 12V pwr outlet, underhood light, exterior cargo lamp

• Driver & front passenger airbags w/passenger on/off switch
• Rear anti-lock brakes
• 3-point outboard seating position seatbelts w/front height adjusters, center lap belts
• Dual note electric horn

3.9L (239) SMPI V6 "MAGNUM" ENGINE ($0)

(STD)

• Rear Wheel Drive
• Tires - Front All-Season
• Tires - Rear All-Season
• Conventional Spare Tire
• Aluminum Wheels
• Power Steering
• ABS
• Front Disc/Rear Drum Brakes
• Privacy Glass
• Intermittent Wipers
• Variable Speed Intermittent Wipers
• Cloth Seats
• Split Bench Seat
• Pass-Through Rear Seat
• Rear Bench Seat
• AM/FM Stereo
• Cassette
• Driver Air Bag
• Passenger Air Bag
• Passenger Air Bag On/Off Switch
• ABS

• Mileage
• EPA Fuel Economy Est - City (MPG): 17
• EPA Fuel Economy Est - Hwy (MPG): 23
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 117
• Maximum Alternator Watts: 1404
• Cooling System
• Total Cooling System Capacity (qts): 14.0
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3100
• Gross Axle Wt Rating - Rear (lbs): 3850
• Curb Weight - Front (lbs): 2283
• Curb Weight - Rear (lbs): 1868
• Gross Vehicle Weight Rating Cap (lbs): 5840
• Gross Combined Wt Rating (lbs): 8400
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 2000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 200
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 6350
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 635
• Suspension
• Suspension Type - Front: Independent Coil
• Suspension Type - Rear: Leaf
• Spring Capacity - Front (lbs): 3100
• Spring Capacity - Rear (lbs): 3850
• Axle Type - Rear: Semi-Floating Hypoid
• Axle Capacity - Front (lbs): 3100
• Axle Capacity - Rear (lbs): 3850
• Axle Ratio (:1) - Rear: 3.55
• Shock Absorber Diameter - Front (mm): 30.2
• Shock Absorber Diameter - Rear (mm): 30.2
• Stabilizer Bar Diameter - Front (in): - TBD -
• Brakes
• Brake Type: Pwr
• Brake ABS System: Rear Wheel
• Disc - Front (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 11.3 x 0.9
• Drum - Rear (Yes or ): Yes
• Rear Drum Diam x Width (in): 9 x 2.5
• Tires
• Front Tire Order Code: TME
• Rear Tire Order Code: TME
• Spare Tire Order Code: TME

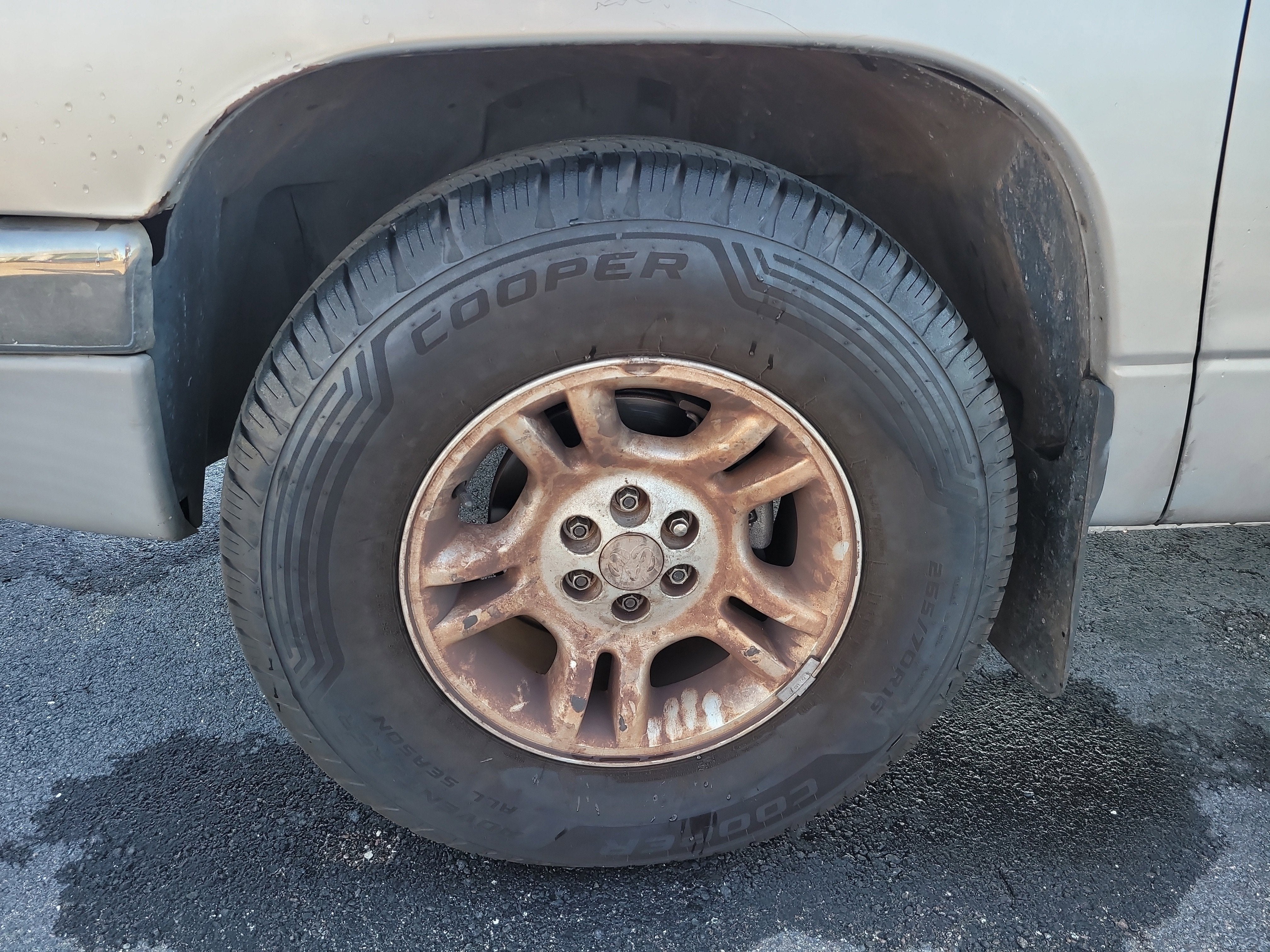

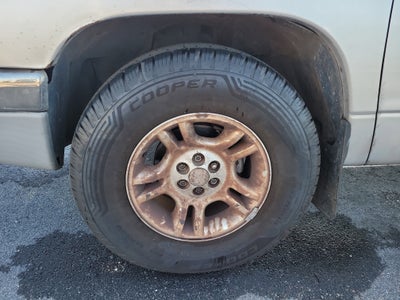

• Front Tire Size: P215/75R15
• Rear Tire Size: P215/75R15
• Spare Tire Size: P215/75R15
• Front Tire Capacity (lbs): 1583
• Rear Tire Capacity (lbs): 1583
• Spare Tire Capacity (lbs): 1583
• Revolutions/Mile @ 45 mph - Front: 755
• Revolutions/Mile @ 45 mph - Rear: 755
• Revolutions/Mile @ 45 mph - Spare: 755

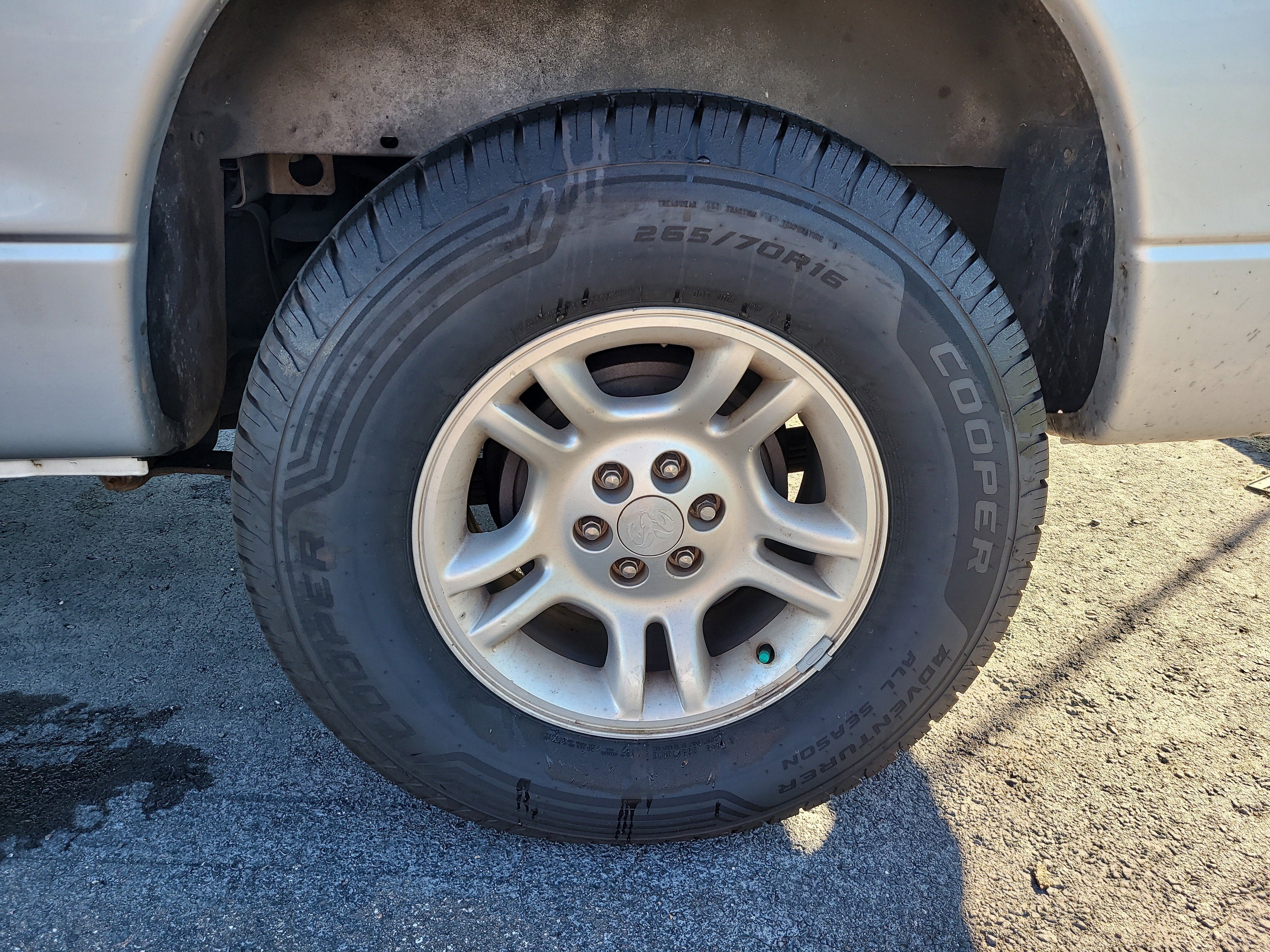

• Wheels
• Front Wheel Size (in): 15 x 7.0
• Rear Wheel Size (in): 15 x 7.0
• Spare Wheel Size (in): 15 x 7.0
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr Rack & Pinion
• Steering Ratio (:1), On Center: 14.8
• Turning Diameter - Curb to Curb (ft): - TBD -
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 24
• Fuel Tank Location: Inboard LH
• Exterior Dimensions
• Wheelbase (in): 131
• Length, Overall w/o rear bumper (in): 215.1
• Width, Max w/o mirrors (in): 71.6
• Height, Overall (in): 66.3
• Overhang, Front (in): 37.8
• Overhang, Rear w/o bumper (in): 49.6
• Front Bumper to Back of Cab (in): 139.7
• Cab to Axle (in): 38.0
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 27.9
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 7.8
• Ground Clearance, Rear (in): 8.6
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 63
• Cargo Box Width @ Top, Rear (in): 57.8
• Cargo Box Width @ Floor (in): 59.3
• Cargo Box Width @ Wheelhousings (in): 45.1
• Cargo Box (Area) Height (in): 17.5
• Tailgate Width (in): 53.3
• Cargo Volume (ft³): 38.1
• Ext'd Cab Cargo Volume (ft³): 45.8
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 40.0
• Front Leg Room (in): 41.9
• Front Shoulder Room (in): 58.1
• Front Hip Room (in): 56.7
• Second Head Room (in): 39.3
• Second Leg Room (in): 36.0
• Second Shoulder Room (in): 57.4
• Second Hip Room (in): 53.1
• Summary

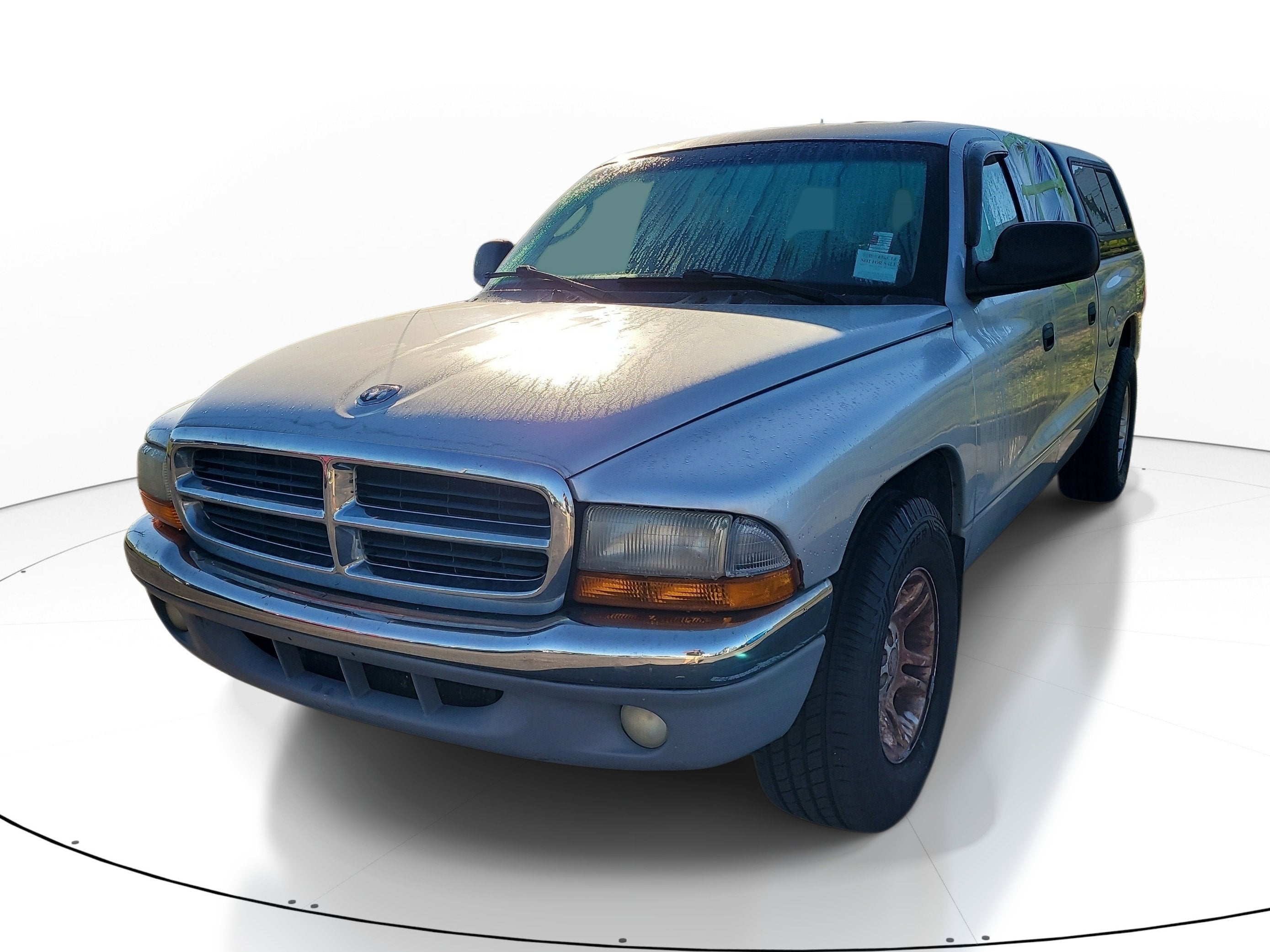

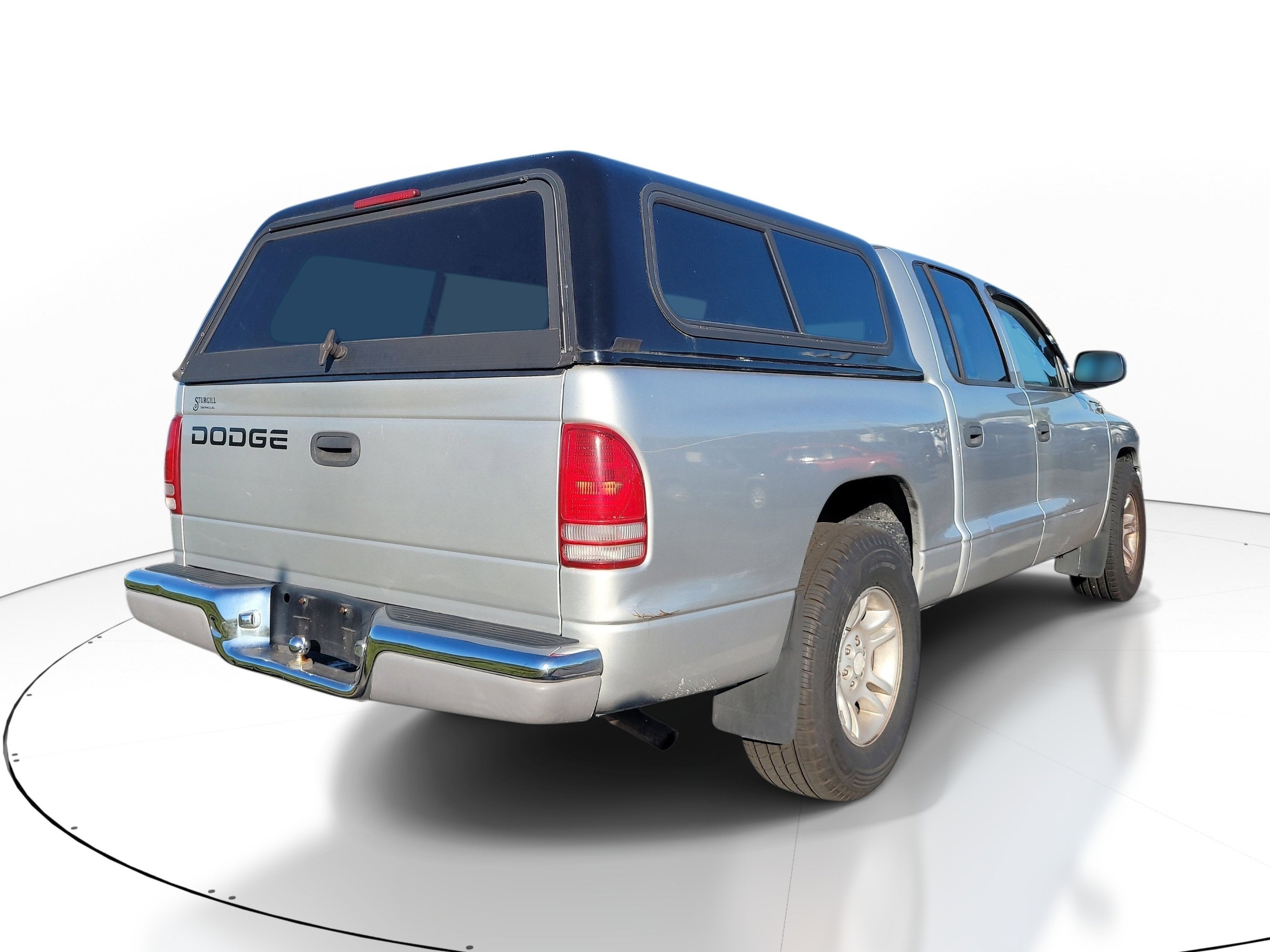

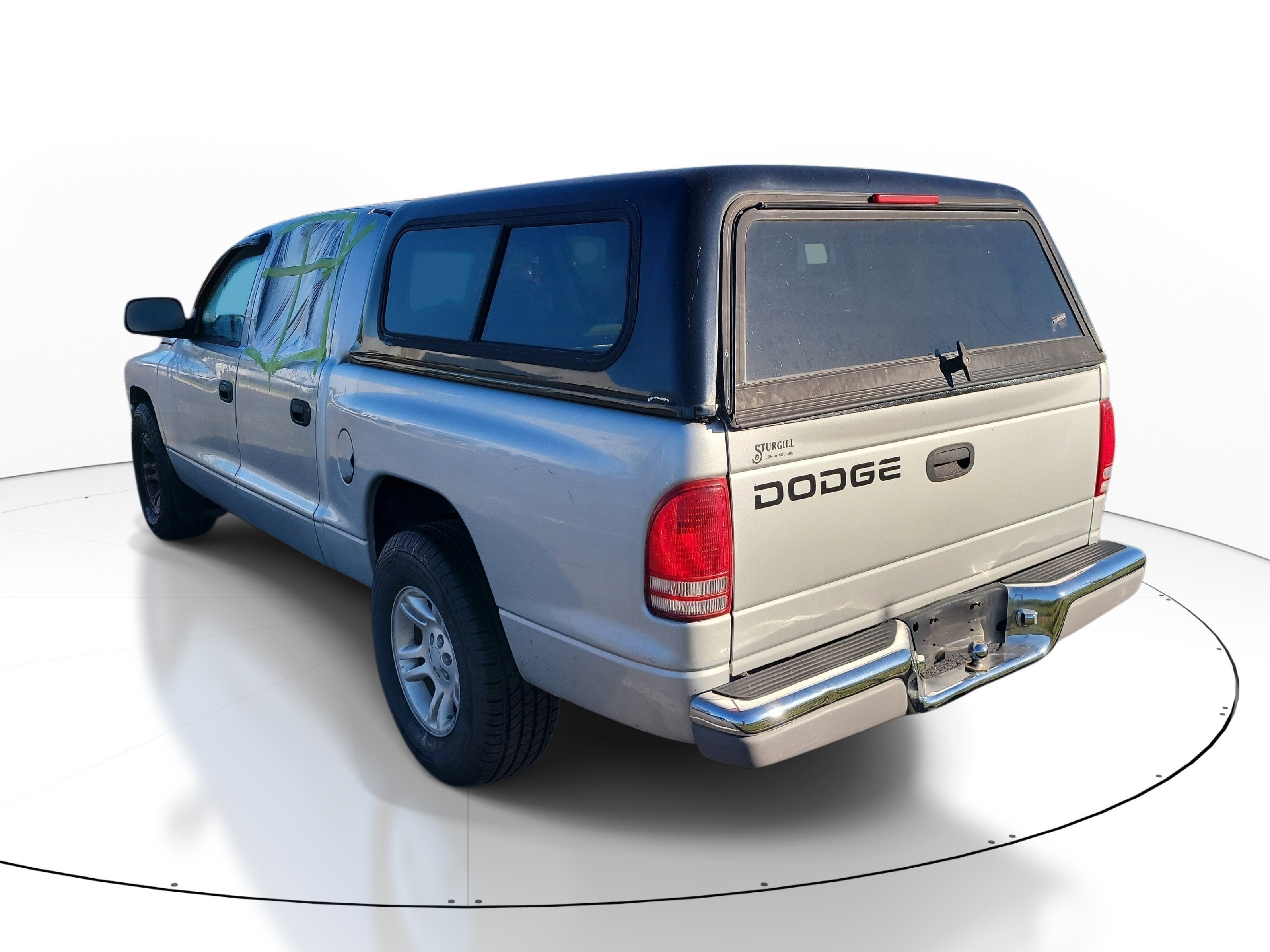

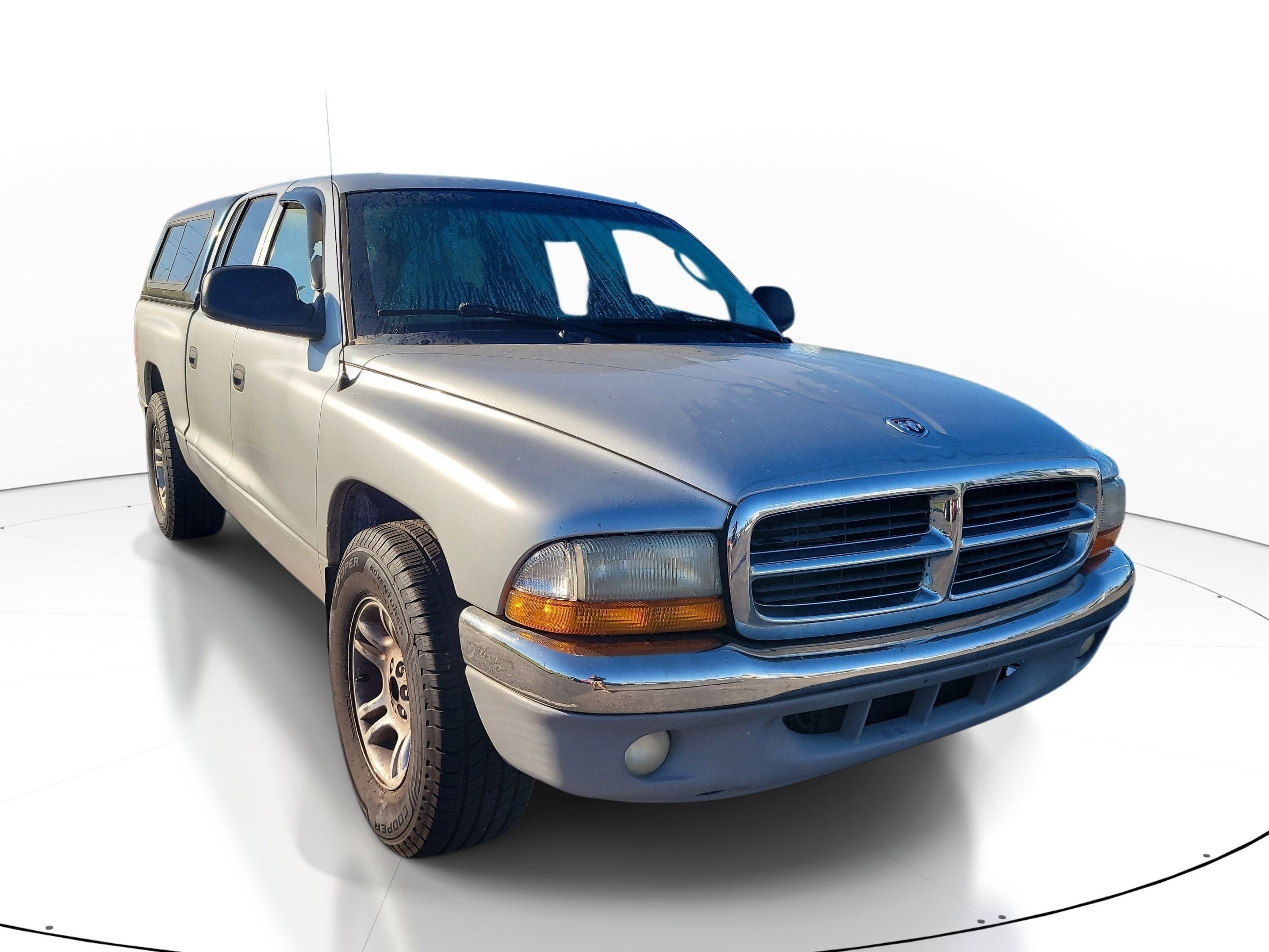

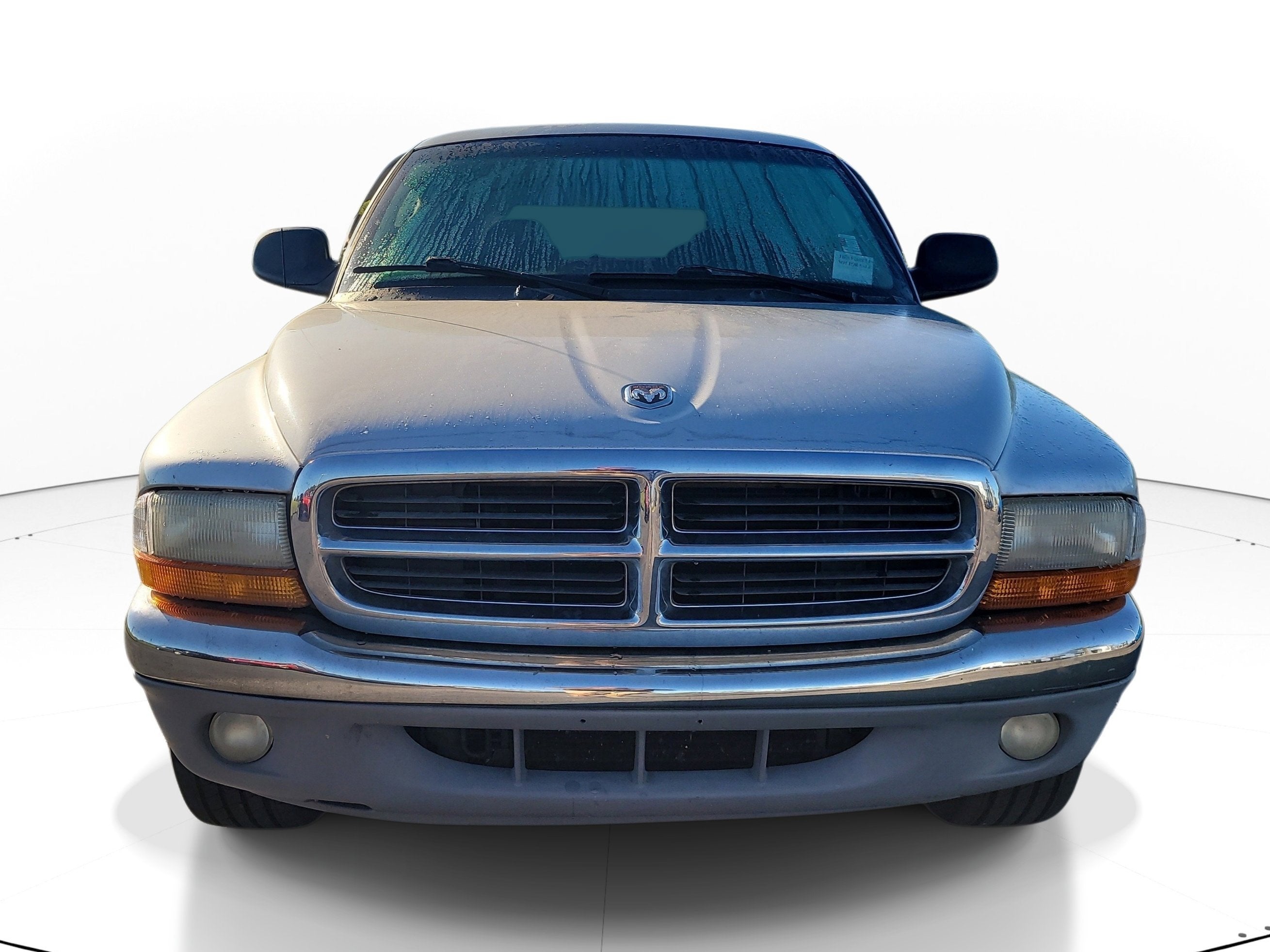

• Vehicle Name: Dodge Dakota
• Body Style: Quad Cab 5'3" Bed
• Body Code: 131.0" WB
