• Air conditioning, single-zone manual
• Defogger, side windows
• Oil life monitor
• Power outlet, 120-volt
• Theft-deterrent system, vehicle, PASS-Key III
• Visors, driver and front passenger, vinyl
• Warning tones, headlamp on and key-in-ignition

• Brakes, 4-wheel antilock, 4-wheel disc
• Exhaust, aluminized stainless-steel muffler and tailpipe
• Rear wheel drive
• Steering, power

• Daytime Running Lamps
• Hill Start Assist
• OnStar and Chevrolet connected services capable (Terms and limitations apply. See onstar.com or dealer for details.)
• OnStar Equipped (subscription required)
• Tire Pressure Monitoring System (does not apply to spare tire)

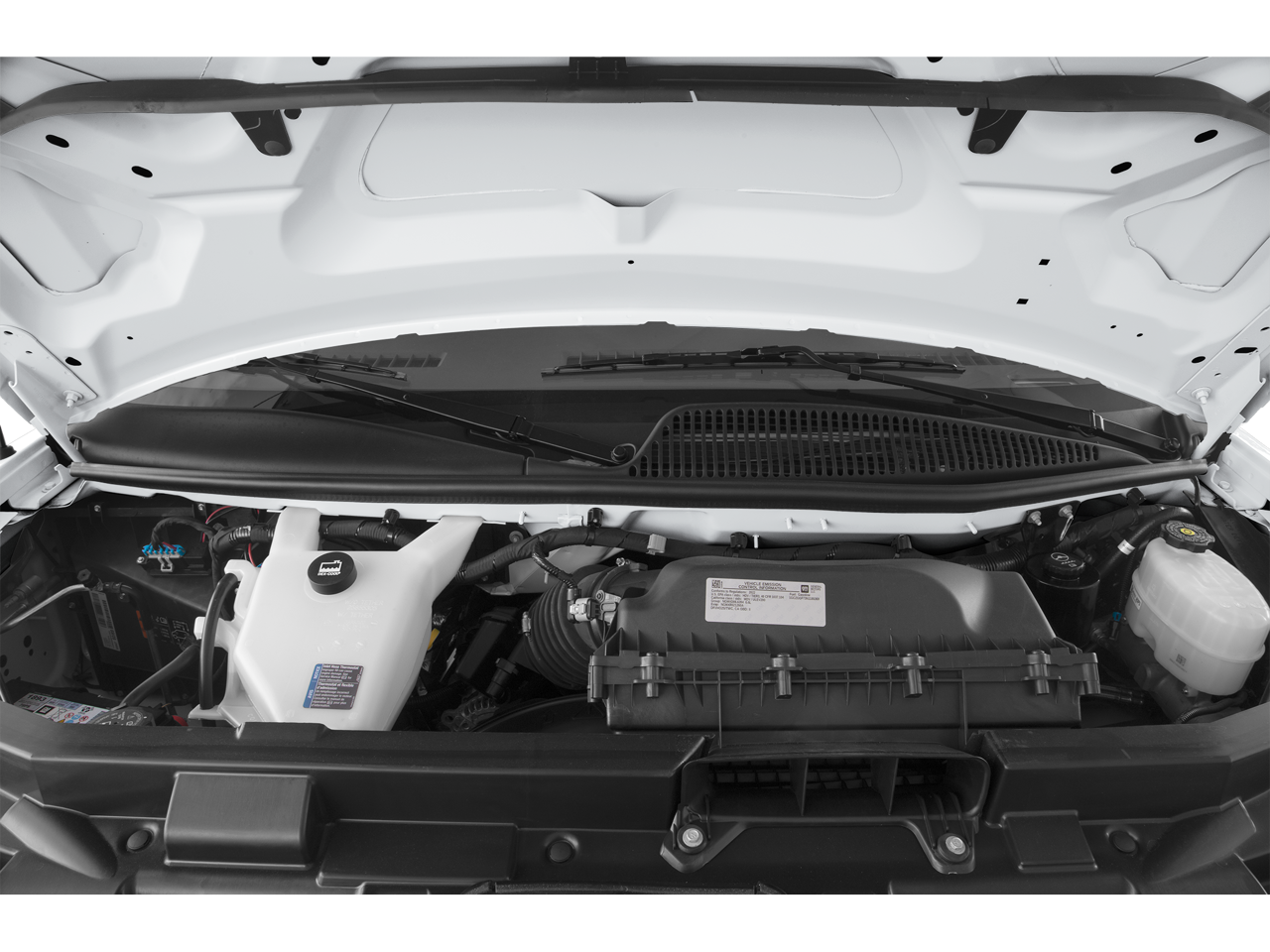

ENGINE, 4.3L V6 ($0)

with Direct Injection and Variable Valve Timing includes aluminum block construction (276 hp @ 5200 rpm 298 lb-ft of torque @ 3900 rpm) (STD)

TRANSMISSION, 8-SPEED AUTOMATIC, ELECTRONICALLY CONTROLLED ($0)

with overdrive and tow/haul mode. Includes Cruise Grade Braking Powertrain Grade Braking and Tap-Up/Tap-Down Driver Shift Control (STD)

SEATS, FRONT BUCKET WITH CUSTOM CLOTH TRIM ($135)

head restraints and inboard armrests Includes (BA3) console with swing-out storage bin.)

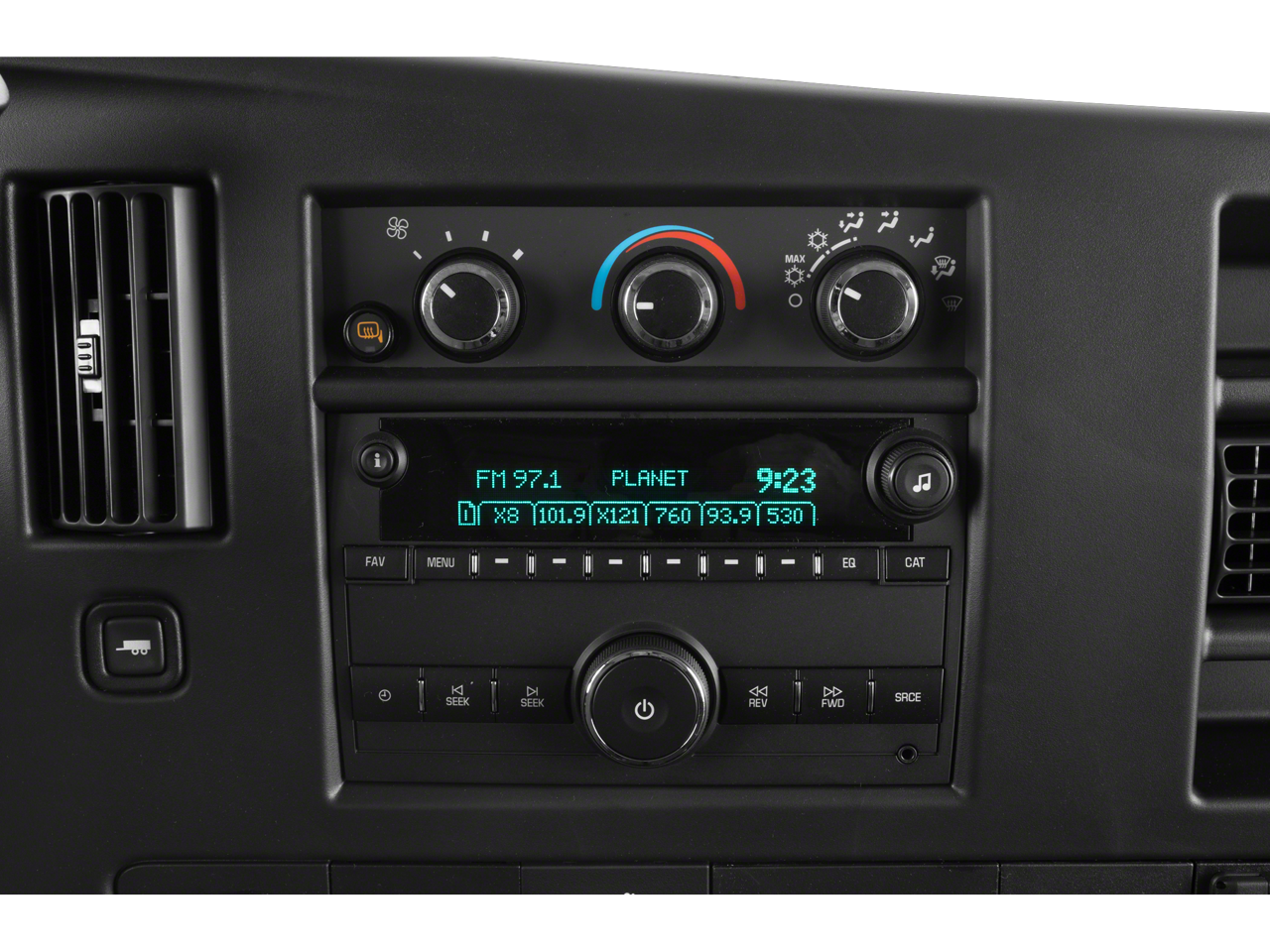

AUDIO SYSTEM, AM/FM STEREO WITH MP3 PLAYER ($0)

seek-and-scan digital clock TheftLock random select auxiliary jack and 2 front door speakers (STD)

TIRE, SPARE LT245/75R16E ALL-SEASON, BLACKWALL ($0)

located at rear underbody of vehicle (STD)

WHEELS, 4 - 16" X 6.5" (40.6 CM X 16.5 CM) STEEL ($0)

includes Gray center caps and steel spare (STD)

GLASS, REAR DOORS AND SIDE CARGO DOORS ($130)

(Includes (A12) fixed rear doors window glass and (A13) fixed rear side door window glass.

BODY, STANDARD ($0)

(STD)

DRIVER CONVENIENCE PACKAGE ($395)

includes Tilt-Wheel and (K34) cruise control

DOOR, SWING-OUT PASSENGER-SIDE, 60/40 SPLIT ($0)

(STD)

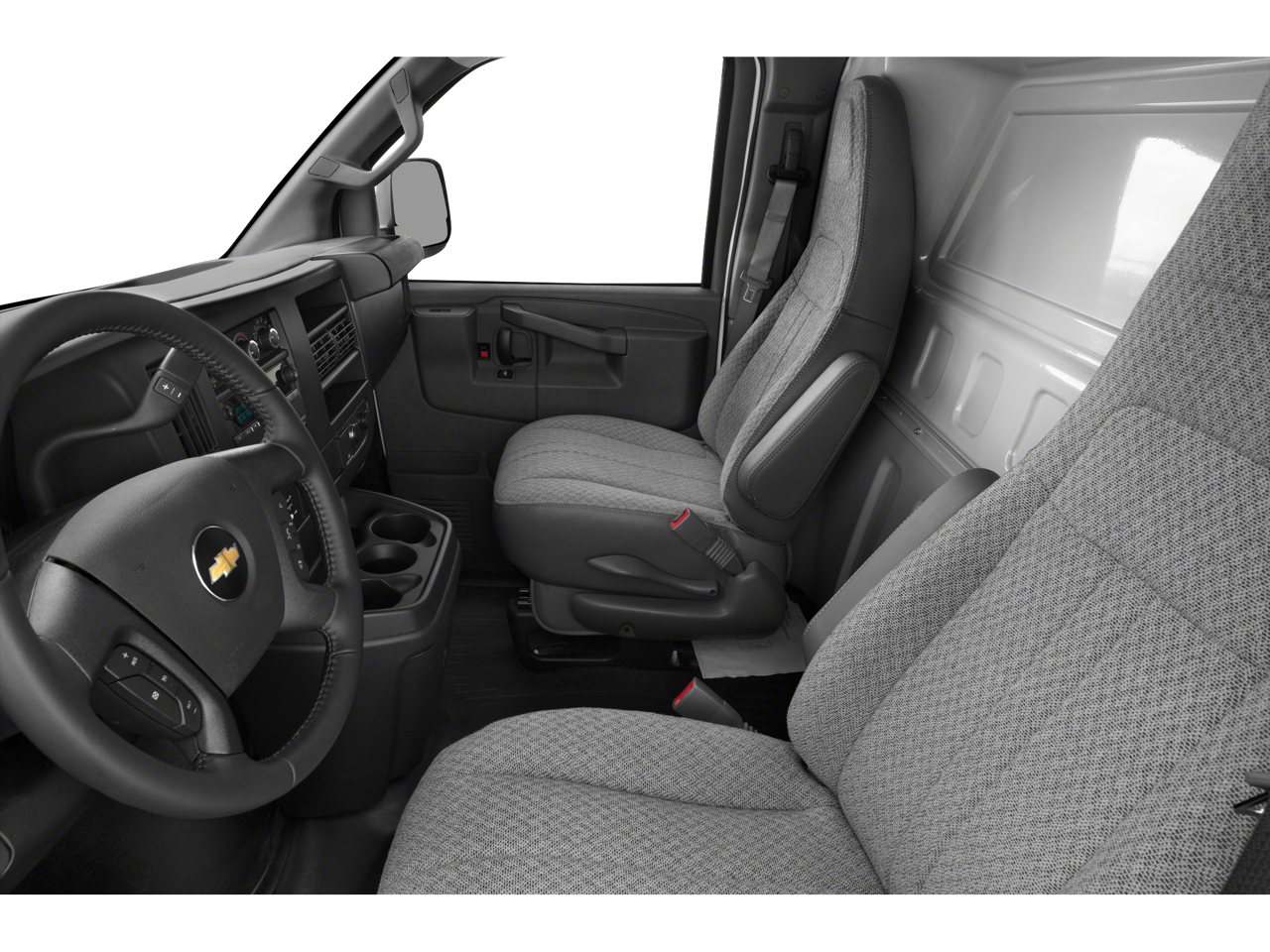

SEATING ARRANGEMENT, DRIVER AND FRONT PASSENGER HIGH-BACK BUCKETS ($0)

with head restraints and vinyl or cloth trim (STD)

WORK VAN PREFERRED EQUIPMENT GROUP ($0)

includes standard equipment

CHROME APPEARANCE PACKAGE ($355)

(Includes (V37) front and rear chrome bumpers and (V22) chrome grille.

• ENGINE 4.3L V6 with Direct Injection and Variable Valve Timing includes aluminum block construction (276 hp @ 5200 rpm 298 lb-ft of torque @ 3900 rpm) (STD)
• TRANSMISSION 8-SPEED AUTOMATIC ELECTRONICALLY CONTROLLED with overdrive and tow/haul mode. Includes Cruise Grade Braking Powertrain Grade Braking and Tap-Up/Tap-Down Driver Shift Control (STD)
• GLASS FIXED REAR SIDE DOOR WINDOWS
• SEATS FRONT BUCKET WITH CUSTOM CLOTH TRIM head restraints and inboard armrests Includes (BA3) console with swing-out storage bin.)
• REAR AXLE 3.42 RATIO
• CRUISE CONTROL
• SUMMIT WHITE
• AUDIO SYSTEM AM/FM STEREO WITH MP3 PLAYER seek-and-scan digital clock TheftLock random select auxiliary jack and 2 front door speakers (STD)
• GRILLE CHROME
• FLOOR COVERING DELETE REAR
• BUMPERS FRONT AND REAR CHROME WITH STEP-PAD
• TIRE SPARE LT245/75R16E ALL-SEASON BLACKWALL located at rear underbody of vehicle (STD)
• FLOOR COVERING BLACK RUBBERIZED-VINYL FRONT ONLY
• JET BLACK/MEDIUM DARK PEWTER CLOTH/VINYL SEAT TRIM
• WHEELS 4 - 16" X 6.5" (40.6 CM X 16.5 CM) STEEL includes Gray center caps and steel spare (STD)
• SHIP THRU PRODUCED IN WENTZVILLE AND SHIPPED TO ADRIAN STEEL
• GLASS REAR DOORS AND SIDE CARGO DOORS (Includes (A12) fixed rear doors window glass and (A13) fixed rear side door window glass.
• BODY STANDARD (STD)
• SEAT BELTS BLACK
• DRIVER CONVENIENCE PACKAGE includes Tilt-Wheel and (K34) cruise control
• DOOR SWING-OUT PASSENGER-SIDE 60/40 SPLIT (STD)
• WINDOW SECURITY BAR REAR SIDE DOOR GLASS
• SEATING ARRANGEMENT DRIVER AND FRONT PASSENGER HIGH-BACK BUCKETS with head restraints and vinyl or cloth trim (STD)
• PAINT SOLID
• WORK VAN PREFERRED EQUIPMENT GROUP includes standard equipment
• GLASS FIXED REAR DOORS WINDOWS
• CONSOLE ENGINE COVER WITH SWING-OUT STORAGE BIN
• CHROME APPEARANCE PACKAGE (Includes (V37) front and rear chrome bumpers and (V22) chrome grille.
• Power Door Locks
• Power Windows
• Rear Wheel Drive
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Steel Wheels
• Conventional Spare Tire
• Tires - Front All-Season
• Tires - Rear All-Season
• Heated Mirrors
• Power Mirror(s)
• Intermittent Wipers
• AM/FM Stereo
• MP3 Capability
• Auxiliary Audio Input
• Bucket Seats
• Bucket Seats
• Tire Pressure Monitor
• Trip Computer
• Power Door Locks
• Power Windows
• Immobilizer
• Power Outlet
• Power Outlet
• A/C
• Back-Up Camera
• Traction Control
• Stability Control
• Daytime Running Lights
• Driver Air Bag
• Passenger Air Bag
• Passenger Air Bag On/Off Switch
• Front Side Air Bag
• Front Head Air Bag
• Passenger Air Bag On/Off Switch
• Telematics
• Requires Subscription
• Back-Up Camera
• Tire Pressure Monitor
• Navigation System
• Telematics
• Requires Subscription

• Brakes
• Brake ABS System: 4-Wheel
• Brake Type: Pwr
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.8 x 1.5
• Rear Brake Rotor Diam x Thickness (in): 13.0 x 1.1
• Cargo Area Dimensions
• Cargo Area Length : Floor to Console (in)
• Cargo Area Length : Floor to Seat 1 (in)
• Cargo Area Width : Beltline (in)
• Cargo Box (Area) Height (in): 55.08
• Cargo Box Width : Wheelhousings (in)
• Cargo Volume (ft³): 239.4
• Cooling System
• Total Cooling System Capacity (qts): 13.6
• Doors
• Side Door Type: Swing-Out
• Electrical
• Cold Cranking Amps : 0° F (2nd)
• Cold Cranking Amps : 0° F (Primary)
• Maximum Alternator Capacity (amps): 105
• Emissions
• Tons/yr of CO2 Emissions : 15K mi/year
• Exterior Dimensions
• Ground Clearance, Front (in): 9.72
• Ground Clearance, Rear (in): 8.62
• Ground to Top of Load Floor (in): 30.3
• Height, Overall (in): 84.75
• Length, Overall (in): 224.05
• Overhang, Front (in): 39.7
• Rear Door Opening Height (in): 49.4
• Rear Door Opening Width (in): 53.42
• Step Up Height - Front (in): 27.67
• Step Up Height - Side (in): 28.25
• Wheelbase (in): 135
• Width, Max w/o mirrors (in): 79.25
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 31
• Fuel Tank Location: Mid-Frame
• Interior Dimensions
• Front Head Room (in): 40.85
• Front Hip Room (in): 65.47
• Front Leg Room (in): 41.35
• Front Shoulder Room (in): 68.85
• Passenger Capacity: 2
• Steering
• Steering Ratio (:1), At Lock: 17.2
• Steering Ratio (:1), On Center: 17.2
• Steering Type: Pwr
• Turning Diameter - Curb to Curb (ft): 49.2
• Turning Diameter - Wall to Wall (ft): N/A
• Summary
• Body Code: ZW9
• Body Style: Cargo Van
• Vehicle Name: Chevrolet Express Cargo Van
• Suspension
• Axle Capacity - Front (lbs): 4100
• Axle Capacity - Rear (lbs): 5360
• Axle Ratio (:1) - Rear: 3.42
• Axle Type - Front: Independent
• Axle Type - Rear: Semi-Floating
• Shock Absorber Diameter - Front (mm): N/A
• Shock Absorber Diameter - Rear (mm): N/A
• Spring Capacity - Front (lbs): 4100
• Spring Capacity - Rear (lbs): 5360
• Stabilizer Bar Diameter - Front (in): 1.38
• Suspension Type - Front: Coil Spring
• Suspension Type - Rear: Hypoid Multi-Leaf
• Tires
• Front Tire Capacity (lbs): 2205
• Front Tire Order Code: XLP
• Front Tire Size: LT245/75R16E
• Rear Tire Capacity (lbs): 3042
• Rear Tire Order Code: YLP
• Rear Tire Size: LT245/75R16E
• Revolutions/Mile : 45 mph - Front
• Revolutions/Mile : 45 mph - Rear
• Revolutions/Mile : 45 mph - Spare
• Spare Tire Order Code: ZLP
• Spare Tire Size: LT245/75R16E
• Trailering
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Maximum Trailering Capacity (lbs): 10000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 740
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 7400
• Vehicle
• Rear Door Type: Dual Swing-Out
• Weight Information
• Curb Weight - Front (lbs): 2879
• Curb Weight - Rear (lbs): 2225
• Gross Axle Wt Rating - Front (lbs): 4100
• Gross Axle Wt Rating - Rear (lbs): 5360
• Gross Combined Wt Rating (lbs): 15000
• Gross Vehicle Weight Rating Cap (lbs): 8600
• Wheels
• Front Wheel Material: Steel
• Front Wheel Size (in): 16 x 6.5
• Rear Wheel Material: Steel
• Rear Wheel Size (in): 16 x 6.5
• Spare Wheel Material: Steel
• Spare Wheel Size (in): 16 x 6.5
